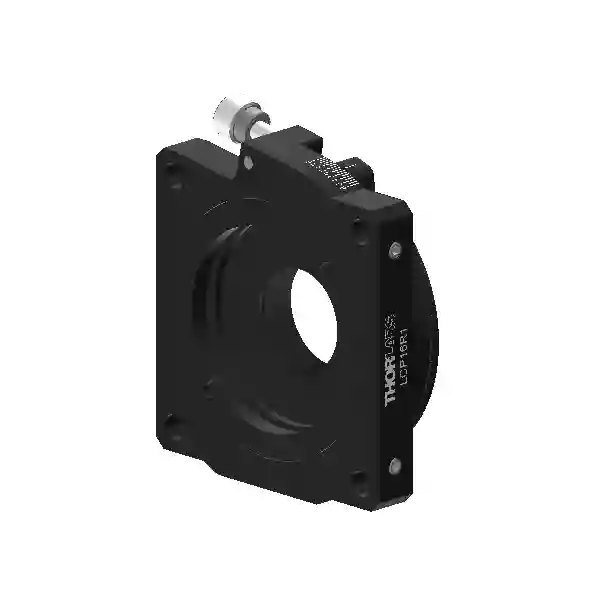

60 mm Cage System Rotation Mount with SM1-Threaded Bore, 8-32 Tap (LCP16R1)

The LCP16R1 is a 60 mm Cage System Rotation Mount with an SM1-Threaded Bore and 8-32 Tap, designed by Thorlabs, a leading brand in the field of optics and photonics. This component is a part of the extensive catalog of 3DOptix, a platform dedicated to providing comprehensive information on various optical elements sourced from diverse vendors worldwide.

The LCP16R1 is a type of Cage Component, specifically a Cage Rotation Mount, designed for use in Thorlabs' 60 mm Cage System. It features a setscrew locking mechanism and fine rotation adjustment, making it ideal for precise optical alignment and adjustment tasks. The mount is designed to accommodate optics with a diameter between 25.4 mm (1 inch) and 25.4 mm (1 inch), providing versatility in its application.

The mount is equipped with an adjuster screw with a 100 TPI thread pitch, providing a high degree of precision in adjustments. The drive type is an adjuster screw, and it is compatible with posts of 25.4 mm (1 inch) in diameter. The clear aperture of the mount is 24.13 mm, ensuring minimal vignetting for most optical applications.

The LCP16R1 features a single adjuster, which is 3/16 inch in size. The post mounting screws are of the 8-32 type, ensuring secure and stable mounting. The mount offers a fine rotation adjustment of 8 degrees and a total rotation range of 360 degrees, providing a high degree of flexibility in adjusting the orientation of the mounted optic.

The mount is made of high-quality materials, ensuring durability and longevity in various optical applications. It is available for purchase directly from Thorlabs, and the weblink provided in the item data indicates that it is currently in stock. The mount is available in the Imperial measurement system, as indicated by the 'Imperial' value in the 'metric imperial' field.
