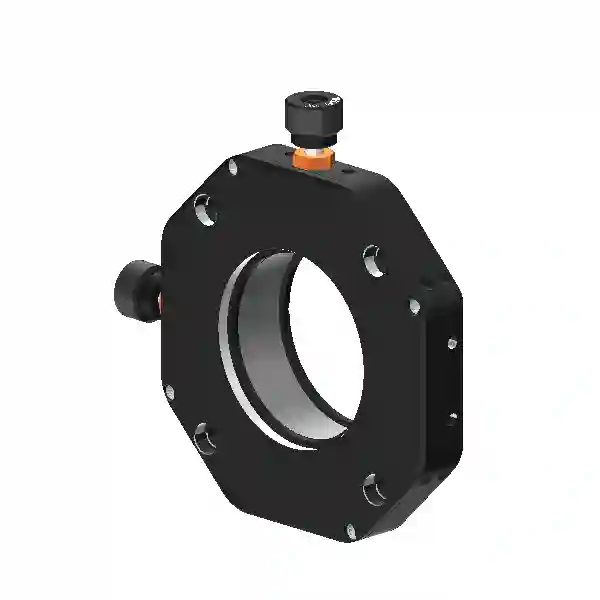

60 mm Cage System Translating Lens Mount for Ø2" Optics (CXY2) by Thorlabs

The CXY2 is a 60 mm Cage System Translating Lens Mount designed for Ø2" optics, manufactured by Thorlabs. This versatile mount is part of the extensive catalog of cage components available in our optical simulation software, sourced from various vendors worldwide.

The CXY2 features a type of movement as a linear (XY) translator, allowing precise positioning of optical elements in two dimensions. The mount is compatible with optics of up to 50.8 mm in diameter and can accommodate optics with a maximum thickness of 14.985999999999999 mm.

This translating lens mount is equipped with adjusters that offer 100 threads per inch (TPI) for fine-tuning the positioning of optics. The mount has an internal bore diameter of 6 mm and provides a travel range of 2 mm, ensuring a wide range of adjustability. The CXY2 features two adjusters with a 3/16 inch thread size, allowing for secure and stable mounting of optical components.

A key feature of the CXY2 is its lockable design, ensuring that the mounted optics remain in place during operation. The mount is compatible with the SM2 thread series, further expanding its compatibility with other cage components and optical elements.

For more information and to access the STEP file for this component, users can visit the Thorlabs product page directly at https://www.thorlabs.com/thorproduct.cfm?partnumber=CXY2. The page is currently valid and in stock, allowing for immediate procurement if desired.
