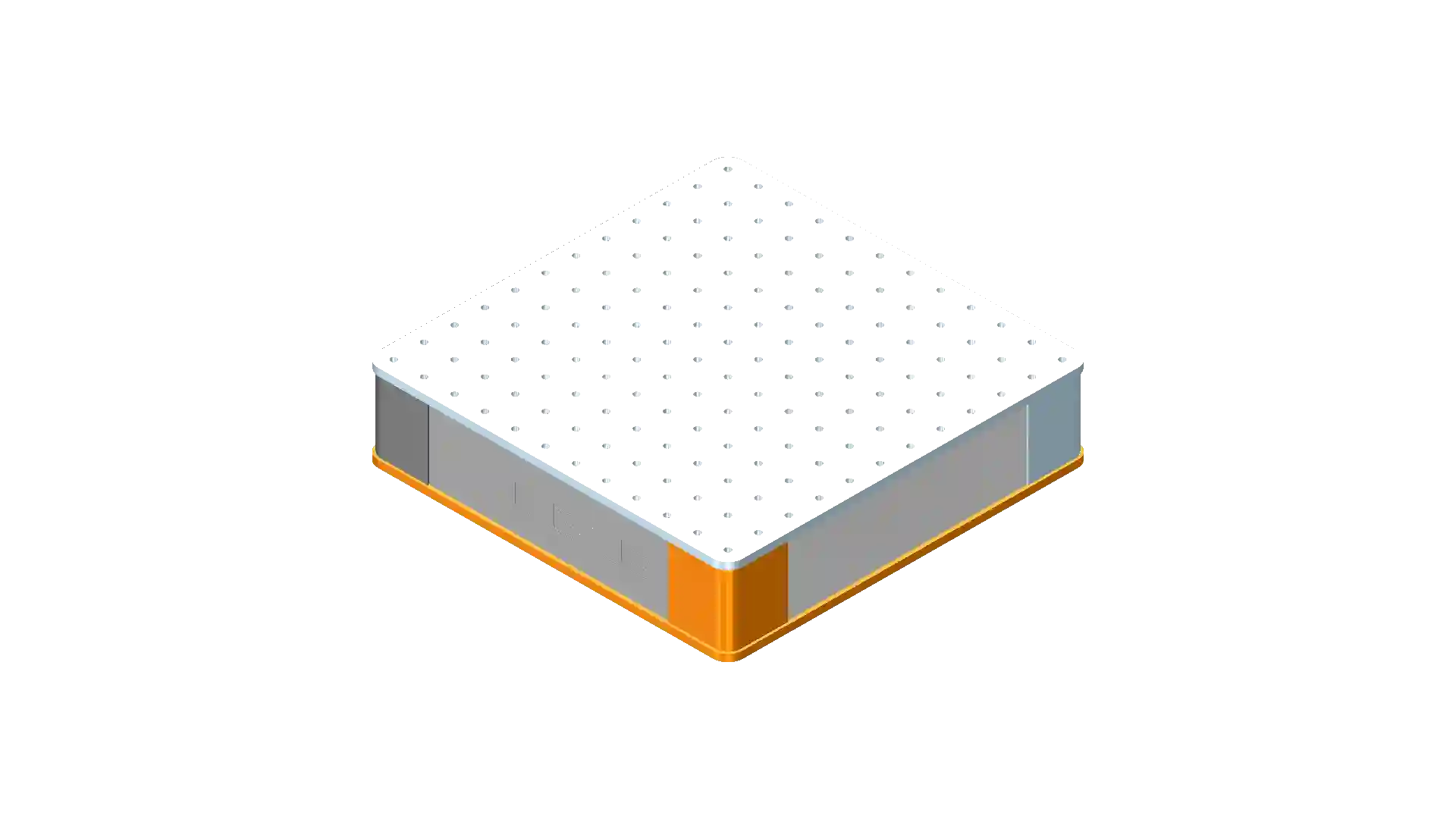

Nexus Breadboard 12” x 12” x 2.4”; 1/4”-20 Mounting Holes by Thorlabs

The Nexus Breadboard 12” x 12” x 2.4”; 1/4”-20 Mounting Holes, catalog number B1212F, is a high-quality optical breadboard from Thorlabs, a renowned manufacturer in the field of optical components. This breadboard, designed for use with imperial units, measures 304.8 mm in width and length and 61 mm in height, providing a sturdy platform for various optical experiments and setups.

Constructed from stainless steel, this breadboard boasts a machined matte finish, ensuring durability and resistance to wear and tear. The breadboard features a steel box side panel, providing additional protection and rigidity. The side trim is finished in matte black linoleum, adding an aesthetic touch to the component.

The B1212F model has sealed side panels, meaning it is not designed to house any electrical components inside. However, it does offer 1/4”-20 threading, a common standard in the industry, for mounting various optical components. The first mounting hole is located 12.7 mm from the edge, with subsequent holes spaced 25.4 mm apart, providing a uniform and versatile grid for arranging optical elements.

The breadboard's maximum screw depth is 53.34 mm, ensuring that components are securely fastened. The surface of the breadboard is non-magnetic, making it suitable for a wide range of optical applications.

For more information, including a step file and the option to purchase, please visit the product page at https://www.thorlabs.com/thorproduct.cfm?partnumber=B1212F. The product is currently in stock, ensuring quick delivery for your optical experiment needs.
